Brand Name : IVO
Model Number : M070AWPA R1
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : M070AWPA R1
Diagonal Size : 7.0"
Panel Type : a-Si TFT-LCD, LCM
Resolution : 800(RGB)×480, WVGA 133PPI
Pixel Format : RGB Vertical Stripe
Active Area : 152.4(W)×91.44(H) mm
Touchscreen : On-Cell Touch, SPI
Designed For : Outdoor High Brightness、Automotive Display
Original 7.0 inch M070AWPA R1 800*480 LCD screen for Automotive
M070AWPA R1 LCD Panel Product details :
| Brand | IVO |
| Model P/N | M070AWPA R1 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 800(RGB)×480, WVGA 133PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 152.4(W)×91.44(H) mm |
| Bezel Opening | 154.9(W)×93.94(H) mm |
| Outline Dim. | 165.82(W)×104.95(H)×9.65(D) mm |
| Treatment | Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 20 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | IPS, Normally Black, Transmissive |
| Support Color | 16.7M 72%NTSC |
| Light Source | WLED [6S3P], 30K hours, W/O Driver |
| Weight | 193g (Max.) |
| Designed For | Outdoor High Brightness,Automotive Display |
| Frame Rate | 60Hz |
| Touch Panel | On-Cell Touch, SPI |
| Interface Type | LVDS (1 ch, 8-bit), 40 pinsFPC |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 90 °C ; Vibration Level: 2.9G (28.4 m/s²) |
| Original 7.0 inch M070AWPA R1 800*480 LCD screen for Automotive | |
M070AWPA R1 LCD Panel Shipping and Package :

M070AWPA R1 LCD Panel FAQ :
Q: Can I pay my order of M070AWPA R1 via credit card ?
A: Yes!you can use your credit card through your Paypal account.
Q: Can you give me a discount if I need a large quantity of M070AWPA R1 ?
A: Of course!If you make a large order, we will give you a discount.
Q: Can You declare my order of M070AWPA R1 to a lower price in commercial invoice for customs ?
A: Yes , we can . pls inform us before shipping .
Q: How long is the warranty ?
A: We offer 90days warranty .
|
|

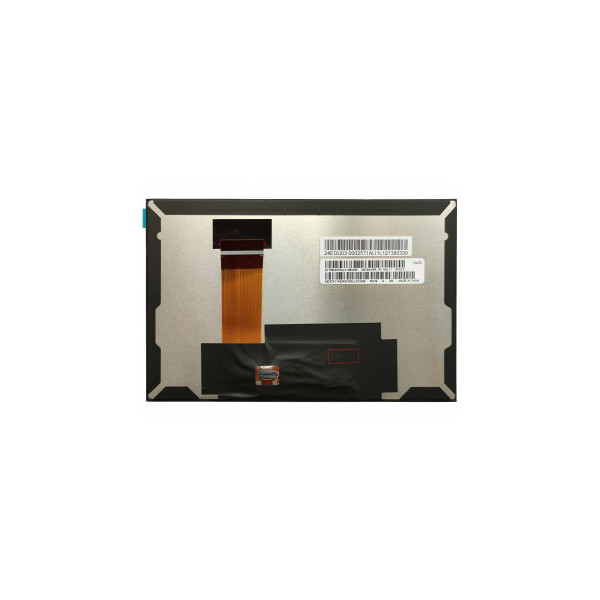

Original 7.0 inch M070AWPA R1 800*480 LCD screen for Automotive Images |
