Brand Name : LG
Model Number : LB070WQ5-TD01
Place of Origin : China
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union
Supply Ability : 100000 Unit/Units per Month
Delivery Time : 7 Days
Packaging Details : Original packaging/conventional packaging box
Model Name : LB070WQ5-TD01
Resolution : 480(RGB)×240, WQVGA 77PPI
Pixel Format : RGB Vertical Stripe
Active Area : 155.952(W)×82.8(H) mm
Outline(mm) : 155.952(W)×82.8(H) mm
Luminance : 500 cd/m² (Typ.)
Viewing Angle : 70/70/50/60 (Typ.)(CR≥10)
Interface Type : TTL (1 ch, 6-bit), 40 pinsConnector

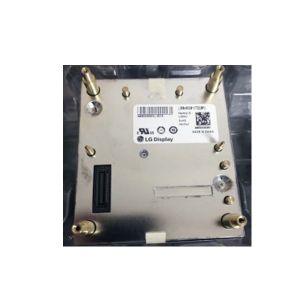

LB070WQ5-TD01 7.0 inch 480*240 LCD Display Panel
  LB070WQ5-TD01 LCD Panel Product details :
| Brand | LG |
| Model P/N | LB070WQ5-TD01 |
| Diagonal Size | 7.0" |
| Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 480(RGB)×240, WQVGA 77PPI |
| Pixel Format | RGB Vertical Stripe |
| Active Area | 155.952(W)×82.8(H) mm |
| Bezel Opening | 158.4(W)×85.1(H) mm |
| Outline Dim. | 155.952(W)×82.8(H) mm |
| Treatment | Antiglare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 400:1 (Typ.) (TM) |
| View Direction | 6 o'clock |
| Response Time | 10/20 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/50/60 (Typ.)(CR≥10) |
| Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 45%NTSC |
| Light Source | CCFL, 15K hours, W/O Driver |
| Weight | 210/220g (Typ./Max.) |
| Designed For | Automotive Display |
| Frame Rate | - |
| Touch Panel | Without |
| Interface Type | TTL (1 ch, 6-bit), 40 pinsConnector |
| Power Supply | 5.0V (Typ.) |
| Environment | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 2.84G (27.8 m/s²) |
| LB070WQ5-TD01 7.0 inch 480*240 LCD Display Panel | |

  Precautions for Purchasing the LB070WQ5-TD01 LCD Panel:

  Authenticity and Quality Assurance:
  Our LCD screen is an original replacement specifically designed for GPS systems.
  We maintain sufficient stock ensuring availability.
  Each screen undergoes rigorous testing to ensure optimal performance.
  Upon shipment, you'll receive a tracking number to monitor delivery progress.
  Swift Processing and Dispatch:
  Orders are processed promptly, with goods dispatched within 48 hours of payment completion.
  Secure Packaging:
  We prioritize the safe delivery of our products.
  Each LCD screen is carefully packaged with multiple layers of protection:
  Anti-static bag
  Bubble bag
  Carton
  Installation Precautions:
  Refrain from using adhesive to affix the screen until its functionality is confirmed.
  We cannot accept returns or issue refunds for screens that have been glued in place.
  Testing and Verification:
  Before installation, conduct a comprehensive test of the LCD screen.
  Record a video during testing to ensure proper functioning.
  Installation should proceed only after confirming the screen's operational status.
  In case of any malfunction, provide us with the test video to facilitate resolution.
  Power Off Before Handling:
  Prior to testing or installation, ensure the device's power is switched off or the battery is disconnected.
  Failure to do so may result in malfunction or damage.
  Handle with Care:
  LCD screens are delicate and susceptible to damage.
  Exercise caution during testing and installation processes to prevent mishaps.
  These precautions are designed to ensure a smooth and satisfactory experience with our LCD panel.
LB070WQ5-TD01 LCD Panel Shipping and Package :
Return & Refund Policy for LB070WQ5-TD01 LCD Panel:

  Initial Steps:
  Begin by verifying the tracking information provided on the designated tracking website to monitor the shipment's progress.
  Contact Us:
  Reach out to us via message, email, or through the trade manager platform to initiate the return or refund process.
  Inspection:
  Thoroughly examine both the package and the item upon receipt to ensure there are no discrepancies or damages.
  Important Note:
  Kindly be aware that defects resulting from human error, damage occurring after use, water damage, and similar issues are not covered under our guarantee policy.
LB070WQ5-TD01 LCD Panel FAQ :
Q: What happen if the lcd panel LB070WQ5-TD01 I received can't work ?
A: our lcd panel LB070WQ5-TD01 was tested ok before shipping .
Q: How to order lcd panel LB070WQ5-TD01 ?
A: Tell us the quantity you need ,Then we will make a PI for you to confirm the order details ,When we confirmed everything, you can arrange the payment ,After we received the payment, we will ship goods to you within 1-2day.
Q: Can you declared low value for my order lcd screen LB070WQ5-TD01 when shipping?
A: Yes, We can do it for you if you need.
Q: How long is the warranty of 7.0 inch LB070WQ5-TD01 ?
A: 90 days .
Contact Information for LB070WQ5-TD01 LCD Panel :

  For any inquiries or assistance, please reach out to us via WhatsApp. Our dedicated team is available during the following office hours, based on China HK working time:

  Monday to Friday (excluding holidays)
  9:00am to 12:00am
  1:00pm to 6:00pm
  Please note that responses to emails may be delayed outside of our office hours. We appreciate your understanding and encourage you to connect with us during our designated working hours for prompt assistance.
|   |
| LB070WQ5-TD01 7.0 inch 480*240 LCD Display Panel Images |
